Karel Svolinský Elementary School

Karel Svolinský Elementary School

Comfortable ventilation and cooling of teaching and social spaces


Basic parameters


Location of units on the roof of the school


Indoor air conditioning units


HVAC wiring inside the gym



DELIVERY OF HEATING, VENTILATION AND AIR CONDITIONING SYSTEM FOR KAREL SVOLINSKÝ ELEMENTARY SCHOOL

Name of contract:     HVAC – Karel Svolinský Elementary School
Term of delivery:       2019

SPECIFICATION:
Phase I: The installation of HVAC units was carried out in the new annex of the school.
Phase II: Reconstruction of the gym, delivery and installation of HVAC units, including electrical inlets and media connections, minor building modifications.



BASIC CHARACTERISTICS:

  • For the annex of the new spaces, 2 HVAC units with a capacity of 1500 m³/hr were used for the individually ventilated sections of the school.
  • Each HVAC unit is equipped with autonomous M&R control, 4 interior HVAC units made by Atrea and monitoring CO² are used for classroom ventilation.
  • Gallery cooling is provided by a split and multi-split unit.
  • For the reconstruction of the gym, a new Mandík HVAC recuperation unit was delivered, providing ventilation and equipped with autonomous control.



imageKarel Svolinský Elementary School

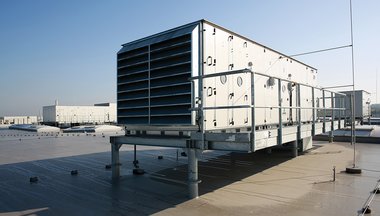

imageHVAC units on the roof

imageView of the indoor HVAC unit
