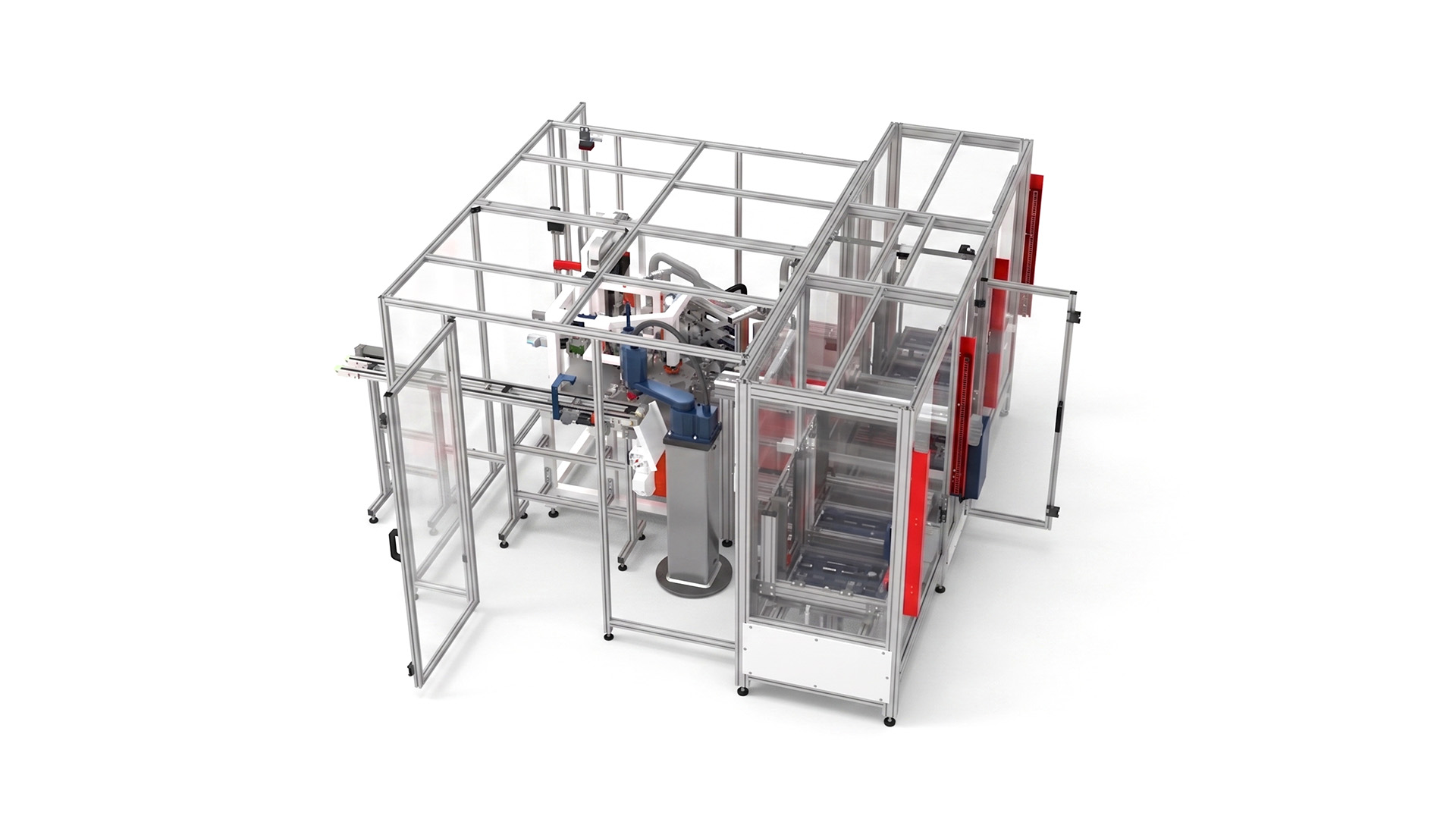

EOL tester
The station ensures high precision and reliability in accordance with Industry 4.0 requirements.
Device Description
Fully automated output station for final inspection, marking, cleaning, and packaging of products.
Technical Solution
Device functions:
- Double-sided optical inspection of seals
- Product marking via indentation with a DMC reader
- Cleaning with ionized air
- Separation of NOK and OK pieces
- Automatic packaging into blisters
Basic technical parameters
| Cycle time |
10 s/piece |
|
Dimensions |
3000 × 3500 × 2200 mm |
|
Control |
PLC + Siemens HMI |
|
Construction |
Steel frame, aluminum profile enclosure |
Description of main equipment nodes
Carousel unit – 6 positions for product handling
Position 1 – part loading using a SCARA robot
Position 2 – optical seal inspection (Keyence LJ-X8200)
Position 3 – part marking by indentation + DMC reader
Position 4 – cleaning with compressed ionized air
Station 5 – Separation of OK/NOK parts and loading into blister packs
Station 6 – Free (reserved for future functions)
Material Flow
- Infeed conveyor for receiving parts from the previous operation
- Preparation and supply of empty blister packs
- Outfeed conveyor for full blister packs and NOK parts
- Automated blister magazine
Applications
- Automotive – inspection, marking, and packaging of gaskets and small parts
- High-volume production lines
- Final output inspection prior to shipment
Optional features
• Remote management and service access
• Integration with MES/ERP systems
• Expansion with additional stations (e.g., laser marking)
Advantages of our solution:
- Full automation without the need for an operator
- High speed and accuracy
- Easy maintenance thanks to modular design
- Ready for Industry 4.0 and remote management
- Customizable to meet customer requirements
