End-forming line

End-forming line

Automation and effective merging of several
workplaces into one unit with robots


Basic parameters


Part of the placement line - Robot 1 and Robot 2


Part of the line with the feeder for pressing end 2


Part of the line with the camera station (control)


Input material: terminals 1 and 2, short tube and long tube


Camera control with test ranges 1,2,3 and 4


Output product



The project resolves the automation of four existing workplaces and a new inspection workplace with the help of two Fanuc robots.

The workplaces are:

  • Machine for crimping end 1
  • Machine for crimping end 2
  • Pipe washing machine
  • Pipe bending machine
  • Inspection station


The operator fills the hoppers and starts the machine ► Crimping end 1 ► Crimping end 2 ► Washing the pipe ► Checking the pipe ► Bending the pipe ► Output station

Workplaces with two Fanuc M-10iA/10M robots were designed and manufactured to insert the pipes into the machines for crimping the ends. Another workplace for inspecting crimped end 1 was designed and manufactured using a Keyence TM-3000 high-speed optical 2D micrometer.

The input material varies according to the requirement for the manufactured pipe size.

Vstupním materiálem jsou:
Trubky o velikosti 230 mm nebo 630 mm.
Koncovka 1
Koncovka 2

Description of the line

  • The operator replenishes the necessary material, selects the type of pipe they want to make and starts the machine.
  • Crimping end 1 (Robot 1 moves this pipe to the second workplace).
  • Crimping end 2.
  • Transferring the pipe by Robot 1 to the washing machine (Robot 2 takes the pipe from the washing machine and places it at the camera station).
  • Blow out of the pipe and subsequent inspection of the dimensions of end 1.
  • If the dimensional check is OK, Robot 2 inserts the pipe into the pipe bending machine, which shapes it into its final form. Robot 2 then moves the finished pipe to the OK box of the output station.
  • If any of the dimensions inspected by the camera are outside the range, the pipe will not be inserted into the bending machine, rather the pipe will be tossed into the NOK box.

The line is controlled by the SIMATIC S7-1500 control system. The danger area is guarded by safety barriers, door and scanner.

Key benefits of our solution

  • Integration of the current equipment into one unit
  • Use of the latest technologies
  • Creating the application according to customer requirements
  • Saving jobs
  • Minimizing production cycle time

imageFrom left: Robot 1, Pipe feeder for crimping end 2, Washing machine, Robot 2 and Pipe bending machine

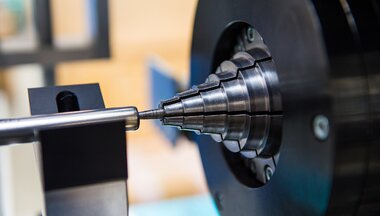

imageInserting the pipe into the feeder for crimping end 2

imageFeeder for crimping end 2​​​​​

imageView of the line from the output station

imageView of the camera station (inspection)
